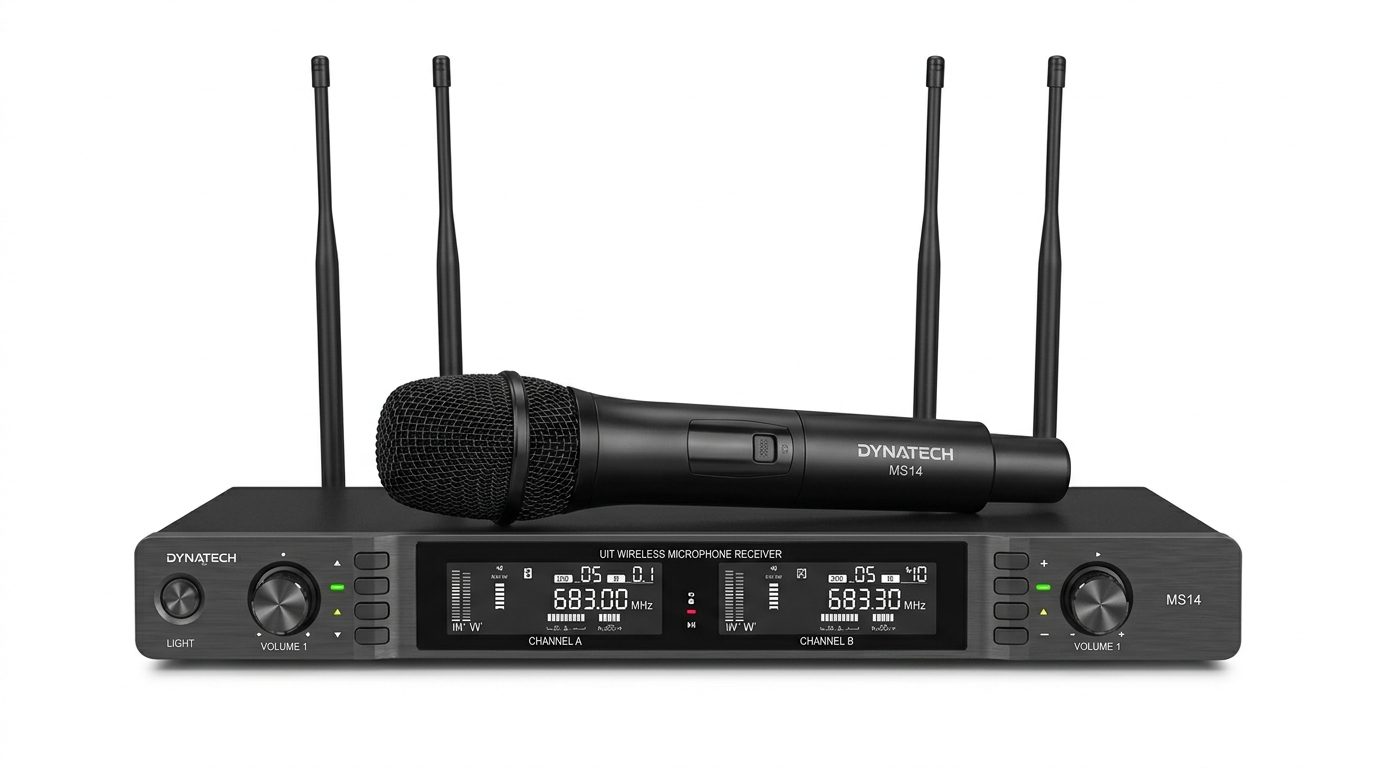

DYNATECH MS-14 WIRELESS MICROPHONE

Key Features

• Optional UHF Band: 640-690MHz.

• Digital 16-Bit ID Pilot Technology: Ensures no crosstalk disturbance, even with multiple sets.

• True Diversity Function: Single-chip design to avoid dead points.

• Automatic Frequency Scanning: Simplifies setup and pairing.

• LCD Display: Shows frequency and battery status on the receiver.

• Long Distance Coverage: Operates efficiently over 80 meters in open spaces.

• Rugged Construction: Durable alloy material for microphone bodies.

Technical Specifications

• Frequency Range: UHF 640-690MHz

• Bandwidth: 50MHz

• Frequency Response: 30Hz - 20KHz ($\pm$2dB)

• Signal/Noise Ratio: 96dB

• Dynamic Range: 96dB

• Distortion: <0.1%

• Sensitivity: -95dBm

• Audio Output: 1x 6.3mm (unbalanced), 2x XLR (balanced)

• Power Supply: DC 12V 1A

• Battery Type: 2 x 1.5V AA batteries

• Battery Life: >5 hours
